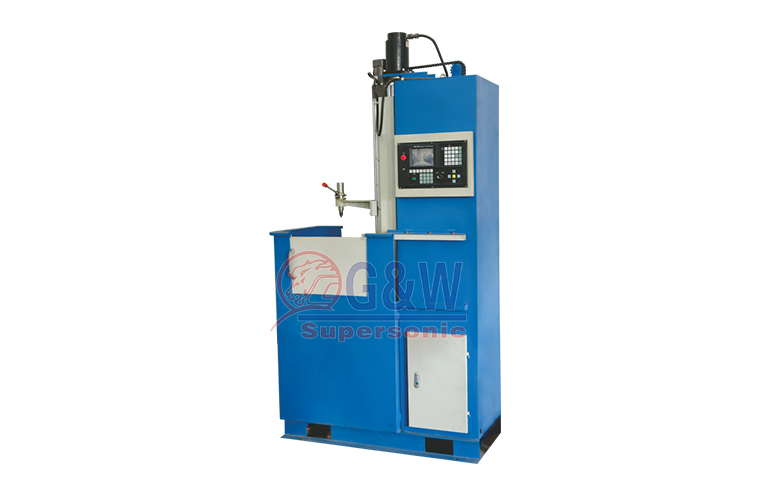

CNC vertical quenching special equipment
Contact us
-
Performance characteristics:
This series machine tool adopts numerical control technology. With continuous, simultaneous, piecewise continuous, piecewise simultaneous quenching functions.
It can be used for induction hardening of shaft, disc, pin, gear and other parts.
Technical parameters:
Maximum rotary diameter: 400
Maximum clamping length: 1000mm
Rotation speed: 30-100 RPM (adjustable)
Lifting speed: 2-60mm/min (adjustable)
Power supply: three-phase four-wire 380V 50-60Hz
Power: 1.1 kw
Weight: 300 kg
Dimensions: 700mm x 1200mm x 1900mm
